Aluminium Backed PCBs (IMS)

Aluminium backed PCBs are now being used in place of traditional FR4 PCBs for high power LED applications. This is due to rapidly changing developments in LED technology, with brighter more powerful LED’s coming on to the market all most daily. This raised a problem to designers and PCB manufactures with larger amounts of heat being generated by the components, the answer came along on the form of IMS (Insulated Metal Substrate) PCB’s. Aluminium backed PCB’s with the use of thermally conductive pre-preg between the copper and the aluminium the thermal performance is 8–10 times better than a standard epoxy glass (FR4) PCB.

We are able to manufacture single sided, PTH or multilayer Aluminium backed PCB’s to your requirements.

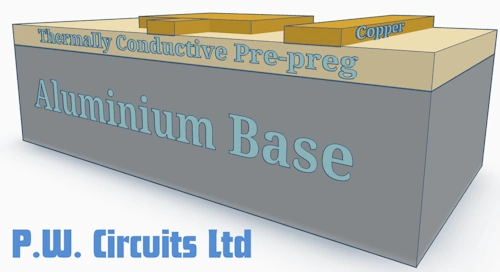

Cross section of a single layer Aluminium based PCB
The simplest type as a conventional PCB with a single layer of copper for your surface mount components with the thermally conductive pre-preg bonding the copper to your aluminium base this is also the cheapest type of aluminium PCB.
Cross section of a multilayer Aluminium based PCB
Both double sided PTH and multilayer Aluminium backed PCBs are also manufacturable use the same processes.

Another common practice with LED application aluminium backed PCBs is the use of White or Black solder resist to reflect light or to help in heat removal. Standard colour solder resist & legend inks can also be applied. A range of surface finishes can be applied, Hot Air Solder Level (HASL) Spb Not RoHS Compliant, Electroless Silver, Electroless Nickel Immersion Gold, Electrolytic Gold (Hard Gold) and OSP (Organic Solderability Preservatives). PW Circuits have invested in two SEL R100 3 axis router’s with customised wet routing features to ensure a burr free profiled aluminium edge.

Contact us today so we can quote all your PCB requirements.
