Flexi and flexi-rigid PCBs

Flexi and flexi-rigid PCBs are replacing traditional FR4 in a wide range of applications, offering benefits such as solving interconnection problems, reducing weight and space, and lowering assembly costs. Flexible applications can be either dynamic flexing (designed to flex or withstand stress over time at elevated temperatures) or flex and stay applications (designed to flex once and then be secured in place).

Types of flexi and flexi-rigid PCBs

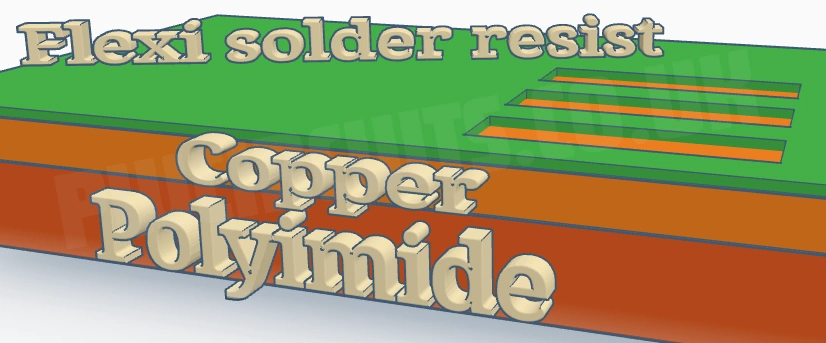

Single sided flexi PCB stack up showing the substate and copper layers
Single-sided flexible circuits are the most straightforward and, therefore, the most cost-effective option. They comprise a single conductor layer on a flexible dielectric film with the option of a coverlay or semi-flexible solder resist (for some flex-and-stay applications). Additional stiffeners can be used to make portions of the flexible circuit more rigid.

Double-sided flexible circuits utilize two copper layers separated by a dielectric layer. Plated-through holes provide connections between the two layers, and coverlays or semi-flexible solder resist (for some flex-and-stay applications) can be added as options. Additional stiffeners can be employed to enhance the rigidity of specific areas of the flexible circuit.

Double sided flexi PCB stack up showing the substate and copper layers

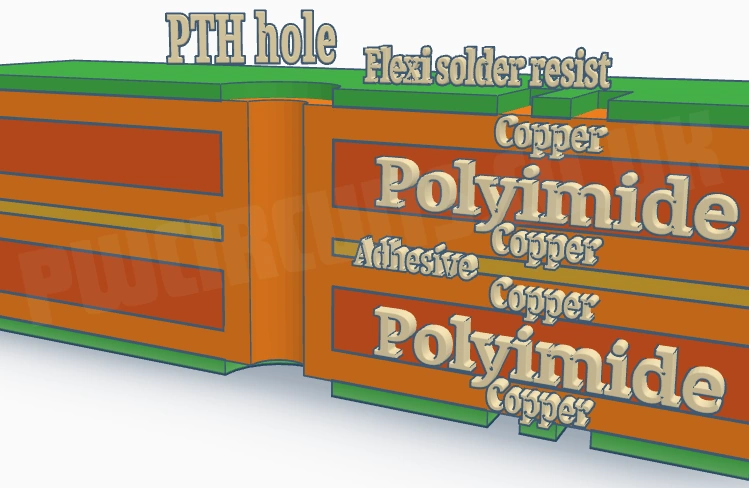

Multi layer flexi PCB stack up showing the substate and copper layers

Multilayer flexible circuits feature three or more copper layers separated by dielectric layers. Plated-through holes facilitate connections between the layers, and coverlays or semi-flexible solder resist (for some flex-and-stay applications) can be incorporated as options. Additional stiffeners can be implemented to enhance the rigidity of specific zones on the flexible circuit.

Flex-rigid PCBs combine flexible copper conductor layers on dielectric film with rigid copper material. Plated-through holes facilitate connections between the flexible and rigid layers. Coverlays are applied to the flexible copper conductor layer, while solder resist is applied to the rigid areas.

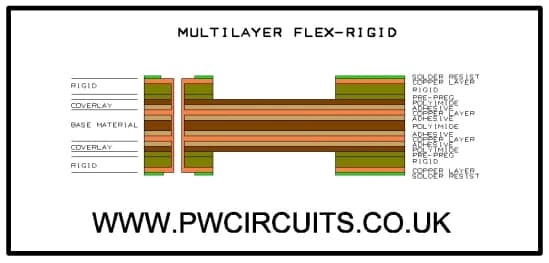

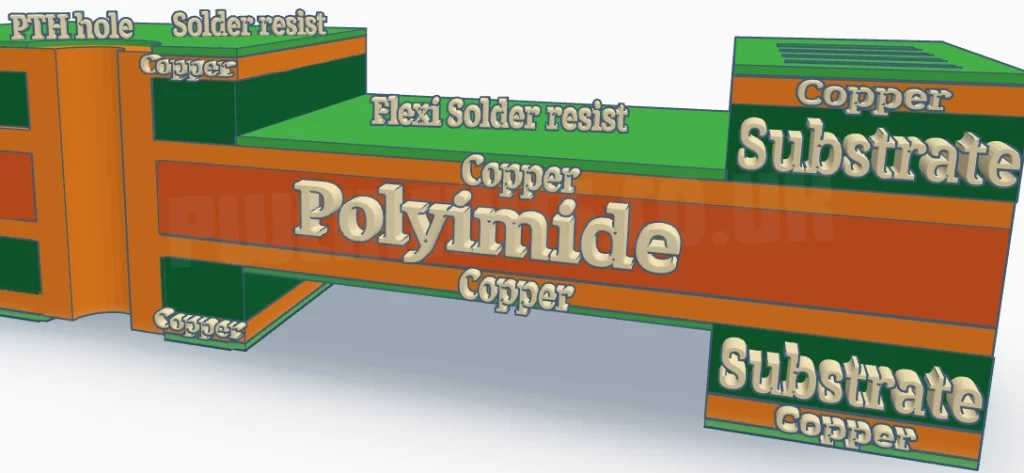

Multi layer flexi rigid PCB stack up showing the substates, flexi in the middle and solid at the top and botom, copper, and solder resist layers

Flexi and flexi-rigid PCB guidelines and material specifications

Tie downs and teardrops

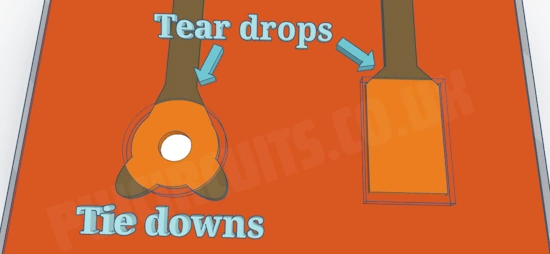

Image showing two different examples of "tie downs" and "tear drops" in the copper pattern to secure the copper pattern to the flexi substrate.

Through-holes in flexible circuits should be reinforced with tie downs. Tie downs are additional copper areas bonded to the pad that are secured by the coverlay to anchor the copper pad and prevent delamination between the copper and the base material. The adhesion of copper to flexible material is weaker than that of standard rigid material. Extra care must be taken when soldering flexible circuits.

Teardrops are the gradual transition from copper track to copper pad. This feature should be added to both through-hole pads and surface mount pads to reduce stress points and help eliminate breakage during flexing.

Coverlay options

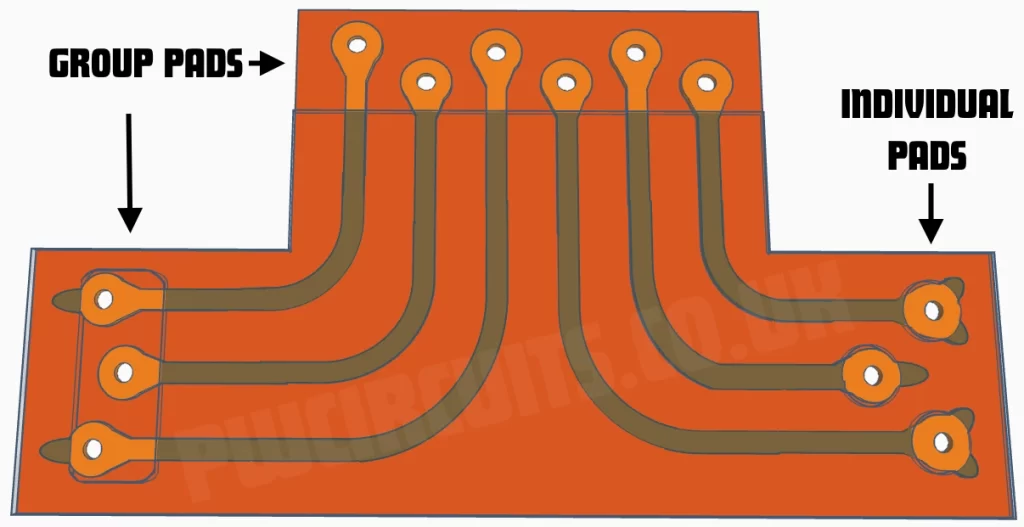

Coverlay is a flexible material applied to the outer layers of flexi and flexi-rigid PCBs to insulate the copper. It is typically made of polyimide or polyester. The coverlay is created using a drilling or routing process, which limits the shapes of openings. The simplest and most cost-effective method is to have individual pads, space permitting. A minimum of 0.20mm distance is required between individual pads. If space is limited, grouping pads is an option. The coverlay pad should be at least 0.25mm larger than the copper pad.

Coverlay around surface mount pads can be routed, but a radius will remain due to the size of the router. Alternatively, a laser cutting process can be used to reduce the radius. Semi-flexible solder resist (for some flex-and-stay applications) can be applied instead of a coverlay. This allows for any shape to be used with a minimum of 0.10mm distance between individual pads.

Diagram showing coverlay covering the copper tracks on a flexi PCB.

Flexi and flexi-rigid PCBs: staggered conductors

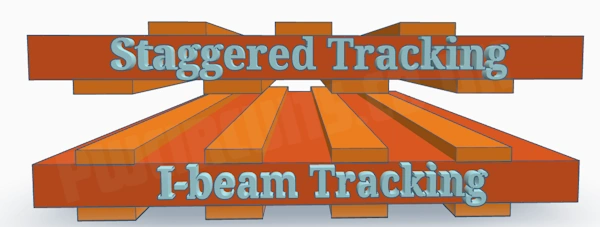

Side profile diagram showing how to stagger the copper tracks on each side of a flexi PCB.

Staggering conductors (copper tracks) is recommended to preserve the circuits’ maximum flexibility. “I beam” designs, where conductors on both layers are positioned directly on top of each other, should be avoided as they increase the stiffness of the circuits’ fold areas.

Fold Lines and Bend Radius

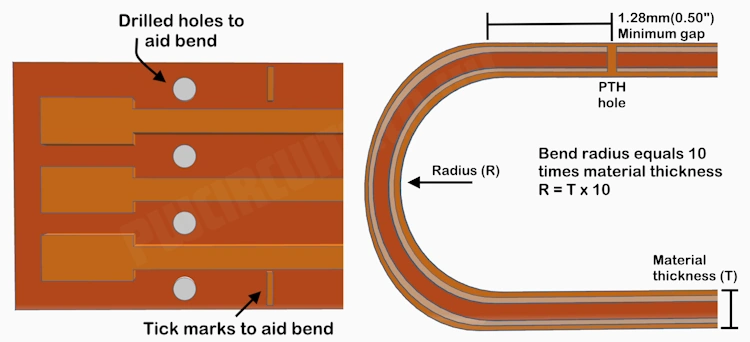

Two diagrams showing how to calculate the bend radius and where to add bend holes on a flexi PCB.

Fold lines can be incorporated into your design using tick marks, which can be added to either the copper layers or silkscreen layers. These ticks facilitate bending your flexi PCB in a specific location. The bend radius of your flexible circuit should be approximately 10 times the total material thickness, including copper. A minimum gap of 1.28mm should be maintained between any plated-through holes. Tracks should be radiused to help mitigate breakage during folding and bending. The track widths should not be altered in the bend areas.

Copper Shielding

Solid copper shielding is the most widely used method but does increase the rigidity of the flexible circuit. It should be factored into the thickness-to-bend radius calculation. Crosshatched copper shielding helps to maintain the circuit’s flexibility. Copper shielding can cover all or selective areas on one or both sides.Solid copper shielding provides excellent EMI/RFI protection but can make the circuit less flexible. Crosshatched copper shielding offers a compromise between shielding effectiveness and flexibility. The amount of shielding coverage can be tailored to specific areas of the circuit based on EMI/RFI considerations.

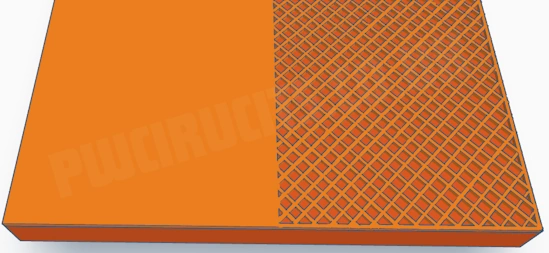

Simple diagram showing an example of crosshatched copper shielding on a flexi PCB.

Flexi Stiffeners

side profile diamgram showing how a stiffener location works on a Flexi PCB. Diagram also shows the Copper, substrate and solder resist / coverlay layers.

Additional support is often required in areas where connectors or components are mounted. Various materials can be employed as stiffeners, with FR4, polyimide, and polyester being the most common choices. Stiffener thicknesses range from 0.050mm to 2.400mm. Bonding of stiffeners can be achieved using high-temperature pressure-sensitive tape or thermal setting adhesive. Holes in stiffeners should be 0.40mm larger than the corresponding holes in the flexible circuit to facilitate registration. To eliminate potential stress points and cracking, the stiffener should overlap the coverlay by at least 0.75mm.

Base Materials for flexi and flexi-rigid PCBs

A variety of copper thicknesses are available for the base material, including 5, 9, 18, 35, 70, and 105 microns, and they can be applied to one or both sides. The polyimide substrate is available in thicknesses of 12, 25, 50, 75, and 125 microns, with 25 and 50 microns being the standard thicknesses. Coverlay polyimide thickness options include 12, 25, 50, 75, and 125 microns, with 25 and 50 microns being the standard thicknesses. Adhesive thicknesses are available in 12, 25, and 50 microns. FR4 and polyimide stiffeners start at 0.050mm thickness. For more information visit our flexi materials page.
